OEM 5v Oil Pressure Sensor Transmitter 30vdc
Description OEM mini 0-5v oil mini pressure sensor transmitter
OEM mini pressure sensor transmitter are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control, pump protection and numerous other processing and control operations. A wide range of electrical connection and process connection options are avail-able to meet almost any requirement.

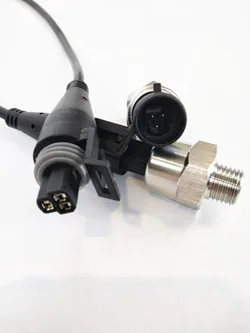

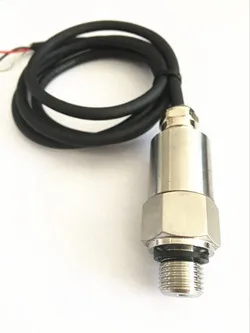

Detailed Images OEM mini 0-5v oil mini pressure sensor transmitter
Specification OEM mini 0-5v oil mini pressure sensor transmitter
| Materials | Gas or liquid compatible with ceramic |
| O-ring | NBR (FKM or EPDM) |
| Signal output | 0.5-4.5V / 1-5V / 0-5V , 3-wire; 0-10V, 3-wire; 4-20mA, 2-wire; |
| Power supply | 5V with signal output 0.5-4.5V / 1-5V / 0-5V, 12...32V with signal output 0...10V, 9...32V with signal output 4...20mA |
| Response time (10 ... 90 %) | ≤2ms |
| Isolation voltage | DC 500V |
| Accuracy | ≤ 1 % F.S @25℃ (Includes linearity, hysteresis and repeatability.) ≤3% F.S@ {-40~125℃} (limit point calibration) |
| 1-year stability | ≤ 0.05 % F.S |
| Permissible temperature of |
| Medium | -20...+125℃ |
| Ambient | -40...+100℃ |
| Storage | -40...+100℃ |
| Compensated temperature range | -20...125℃ |
| Mean TC of zero | typical:0.03%F.S/℃; maximal:0.05%F.S/℃ |
| Mean TC of range | typical:0.03%F.S/℃; maximal:0.1%F.S/℃ |
| CE - conformity |
| Test Standard | EN 55022:2010/AC:2011 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 55024:2010 |
| EMC directive | 2014/30/EU |
| Shock resistance | 1000g according to IEC 60068-2-27 (mechanical shock) |
| Vibration resistance | 20g according to IEC 60068-2-6 (vibration under resonance) |
| Wiring protection | Protected against reverse polarity, overvoltage and short circuit |
| Weight | 70g |
| Connection | G1/4 (NPT1/4, G1/4 and others available) |
Features OEM mini 0-5v oil mini pressure sensor transmitter
1. Small size easy installation
2. Stainless steel case sturdy and durable
3. Wide temperature range:-40~125℃
4. Durable thin film sensor technology
5. Pressure ranges from -1 bar to 60bar
6. 0.5-4.5V ,1-5V ,0-5V ratiometric outputs
7. 0-10V, 4-20 mA , others available
8. Highly resistant to pressure spikes and vibration
Applications OEM mini 0-5v oil mini pressure sensor transmitter
Automobile, compressor and refrigeration Industry
Engineering machinery
pressure control and monitor
Energy and water treatment system
Armarium, agricultural machinery
Hydraulic and pneumatic control system
Iron and steel industry, light industry
Pump, fitness equipment, household appliances
Hydraulics and pneumatics
Liquid level measurement
Selection Guide OEM mini 0-5v oil mini pressure sensor transmitter
1. What's measurement range do you need?
2. What's input power do you need?
3. What's output signal do you need?
4. What's thread connection type do you need?
5. What's qty do you need?
