Company Profile
Xi’an Yunyi Instrument Co., Ltd. is a national high-tech enterprise, specializing in the R&D, production and sales of pressure meter,level meter, flow , temperature instrument and automatic control equipment.The 2638-square-meter workshop has its own machining department and production line, focusing on R&D and production of customized and industrialized automatic instruments, providing complete set of customized solutions to create high-quality instruments.

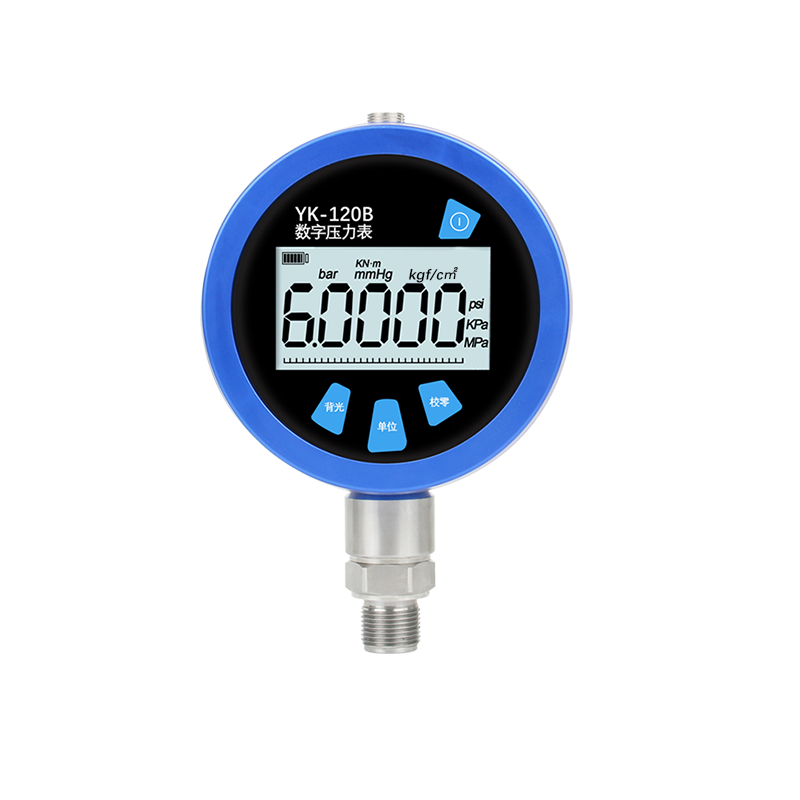

Specification of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge YK120B
| Item | standard digital pressure gauge 0.05 accuracy |
| Pressure Range | -100KPa ~260MPa(optional) |
| Signal Output | RS485 |
| Accuracy | 0.05 |
| Display | 5 digital dynamic display and Simulation of light indicator |
| Overload | 1.5-3 times of full scale |
| Turn off the current | less than 10 A |
| Power supply | 7.4V high energy lithium battery or rechargeable battery |
| Medium Temp | -40℃~90℃ |
| Process Connection | M20×1.5, 1/4NPT, 1/2NPT optional |
| Ambient temp | (-10~80)℃ |
| Relative humidity | <95% |
| Atmospheric pressure | (86~106)KPa |
| Storage temp | (-20~70)℃ |
| Pressure range optional | Low Pressure Range:0~6KPa,0~10KPa,0~20KPa, 0~0.04MPa,0~0.06MPa,-0.04~0MPa,-0.06~0MPa,-0.04~0.02MPa,-0.04~0.06MPa
Middle Pressure Range :-0.1~0MPa ,0~0.1MPa,0~0.16MPa,0~0.25MPa,0~0.4MPa,0~0.6 MPa,0~1MPa,0~1.6 MPa ,0~2.5MPa,0~4MPa,0~6MPa,0~10MPa,0~16MPa,0~25MPa,0~40MPa,0~60MPa
High Pressure Range :0~100MPa,0~160MPa,0~250MPa |
Features of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge YK120B
- Micro power consumption, high accuracy, high resolution of five bit digital LCD display; Intelligent calibration, linear repair, two second magnetic pen induction zero adjustment
- Pressure unit:MPa,KPa,Pa,mBar,Bar,Psi,mmH2O,mmHg
- Can display online dynamic pressure curve, peak recording function, etc. (optional) ;
- Optional functions: RS485 output/ 4-20mA output/ USB interface/ memory function (optional)
Application of Laboratory High precision Accuracy 0.05 Digital Pressure Gauge YK120B
- Check the general pressure gauge
- Check the precision pressure gauge
- Check sphygmomanometer, other pressure meter
- Measuring precision pressure
FAQ
Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
