Brand Name : Yunyi
Model Number : YK-100B
Certification : CE,ROHS,SIL
Place of Origin : China
MOQ : 1 Pcs
Price : negotiation
Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram
Supply Ability : 10000 Pcs / Month
Delivery Time : 8-15 days
Packaging Details : Carton: 1kg
Range : -0.1~0~250MPa
Measuring medium : Water, gas, etc. compatible with stainless steel
Accuracy : 0.25,0.1,0.05
Pressure Type : Vacuum,Gauge Absolute Pressure
Display : 5-digit dynamic display + simulated light bar instructions
Pressure unit : MPa、Kpa、PSI、mmHg、 Bar、 kgf/cm2、inHg inH2O
Working temperature : -10~60°C
Case material : SS
Working humidity : ≤80%RH
Product Description:

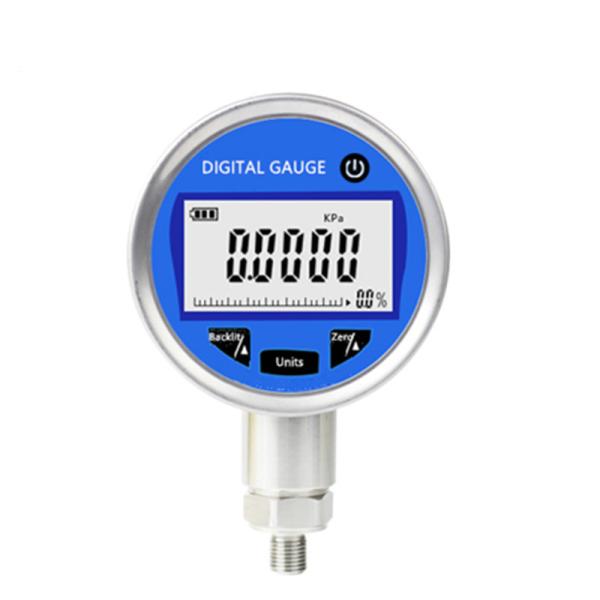

The YK-100B Digital Pressure Gauge is a new low-power smart product developed by our company. It employs advanced low-power components and unique software processing technology to achieve true continuous pressure measurement. The built-in button battery supports over 3 years of continuous 24-hour operation. It features a large-sized segmented LCD display with a wide viewing angle for clear and intuitive readings. Pre-production testing includes high/low-temperature aging, stress aging, and temperature compensation processes, ensuring stable accuracy within (0~50)℃ for one year with 99% confidence.
Features
1. Ultra-low power consumption, high-precision high-definition digital LCD display
2. Compact design with intuitive operation for field calibration and precision pressure measurement
3. Intelligent calibration: linearity restoration, 2-second magnetic pen zero adjustment
4. Dynamic pressure display with percentage-of-pressure readout
5. Pressure units: mmH₂O, mmHg, psi, kPa, MPa, Pa, mbar, bar (10 selectable units)
6. Digital pressure gauge supports 485 RTU protocol; PC software enables real-time data monitoring and transmission
Application:
1. Calibration standard for (differential pressure) transmitters and pressure gauges
2. Chemical process online monitoring
3. Group TS national H equipment E projects
4. Raw material monitoring in pharmaceutical factory water pressure test
5.Pressure measurement oftanks in printing plants
6.Sewage Pipeline Monitoring
Specification:
| Range | -0.1~0~250MPa | Accuracy | 0.25,0.1,0.05 |
| Measuring medium | Water, gas, etc. compatible with stainless stee | Pressure Type | Vacuum,Gauge Absolute Pressure |
| Case material | SS | Power | Rechargeable lithium battery |
| Display | 5-digit dynamic display + simulated light bar instructions | Medium temperature | Yes |
| Connection size | M20x1.5 Male or oem | Pressure unit | MPa,Kpa,PSI,mmHg, Bar, kgf/cm2,inHg inH2O |
| Working humidity | ≤80%RH | Working temperature | -10~60°C |



|
|
